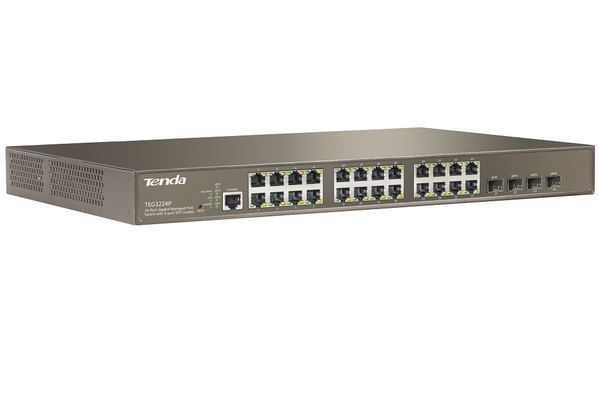

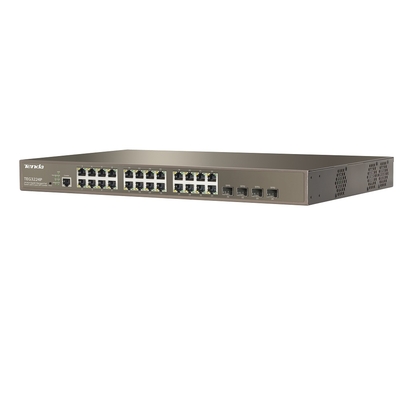

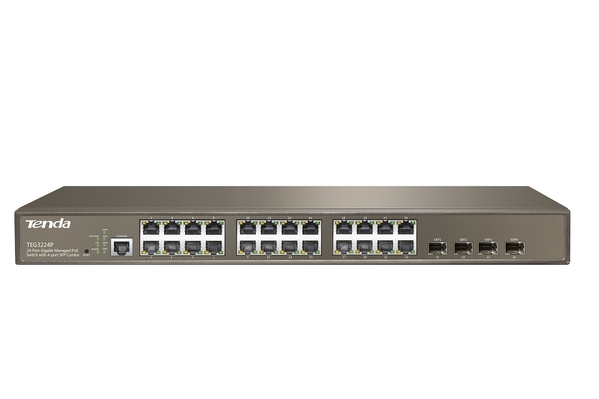

24-Port 10/100/1000Mbps with 4 Shared SFP PoE Managed Switch
You Might Also Want to Add
More infoMake 4 interest-free payments of $202.16 fortnightly and receive your order now.
Tenda TEG3224P, which is dedicated for surveillance projects and smart wireless network. It provides 24 10/100/1000 Mbps auto-negotiation PoE ports and 4 combo SFP slots, all the PoE ports support IEEE 802.3af (15.4W) and 802.3at (30 W) compliance. In addition, it features with ARP attack defense, worm attack defense, IP+MAC+PORT+VLAN Binding, MAC filter and other safety setting. The switch also integrates with the humanized web-based managements, perfect QoS strategy and rich VLAN function. It is best choice for your network.
| Standard & Protocol | IEEE 802.3,IEEE 802.3u,IEEE 802.3z,IEEE 802.3ab,IEEE 802.3x,IEEE 802.1D,IEEE 802.3af,IEEE 802.3at |
| Layer 2 switch | All ports support linear forward Packet forwarding speed: 35.7Mpps |
| MTBF | ≥100 thousand hours |
| Store&Forward | Yes |
| Switch Fabric | 56G bit/s |
| MAC Address Table | 8K MAC Support set port MAC address learning maximum number |
| Fixed Port | 24 10/100/1000Base-T ports (Data/PoE) 4 10/100/1000 Base-X SFP ports ( Combo) |
| Optional Module | SFP optical fiber module with single port |
| Power supply module | Supply 24 RJ-45 802.3af(15.4W)/12 RJ-45 802.3at(30W) Power Pin Assignment: 1/2(+),3/6(-) |
| Input Voltage | AC: 176V~264V 50/60Hz |
| Dimension | 440 × 284 × 44 (W x D x H mm) |
| Weight | <5kg |
| Consumption | Power consumption:<450W PoE Power Budget: 370 Watts |
| Operation Temperature | 0~45 Degree C |
| Operating Humidity | 10%~95%(Non-condensing) |
| Port Trunking | Support LACP Support manual polymerization 12 groups of port trunk support, up to 16 GE port per trunk group |
| PoE supply management | PoE port setting and power priority supply setting PoE over temperature protection Smart graphical management and detection of PD equipment, (priority, port state, power allocation, PD equipment state), intelligent management power of PD equipment |
| Layer 2 ring network protocol | Conform to STP/RSTP/MSTP Support equipment to prevent the loop |
| VLAN | Support port-based VLAN(4K), protocol-based VLAN Compliant with Voice VLAN, VLAN Mapping, VLAN VPN(QinQ), flexible QinQ |
| DHCP | DHCP Snooping, DHCP Relay/Client/Server DHCP Snooping Option82/DHCP Relay Option82 |
| Multicast | Support IGMP Snooping, multicast VLAN, IGMP V1/V2, PIM-SM/ PIM-DM/MSDP |
| Mirroring | N: 1 port mirror, flow mirror, RSPAN(Remote port mirror) |
| ACL | Support L2 ~ L4 (Layer 4) packet filter function, supply source of based on MAC address, the destination MAC address, the source IP address, destination IP address, TCP/UDP port number and protocol type, VLAN and illegal frame filtering Support based on |
| QoS | Support for the rate at which port to receive a message and send a message to limit the speed Support message to redirect, the function of the CAR Support 8 port output queue Support port queue scheduling (SP,WRR) Support port queue scheduling (SP,WRR) |
| Security | User classification management,and password protection IEEE 802.1 X authentication Centralized MAC address authentication Protection of the ARP,IP source address intrusion detection Support SSH2.0, port isolation |
| Management | XModem/FTP/TFTP load to upgrade Support command line interface (CLI), Telnet, the configurations of the Console port Support the SNMP v1 / v2, v3 and WEB network management Support RMON (Remote Monitoring) 1,2,3,9 group MIB Support system logs, hierarchic |
Package Content:
1 x Tenda TEG3224P 24-Port 10/100/1000Mbps with 4 Shared SFP PoE Managed Switch
(V28-ELETENDTEG3224P)
