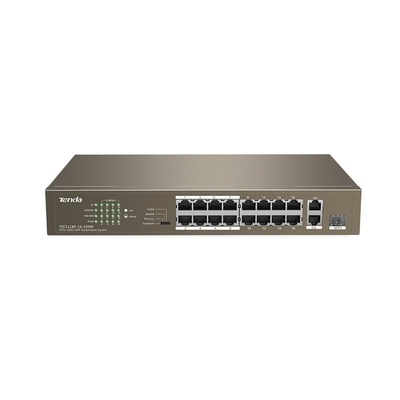

2GE/1SFP Desktop Switch With 16-Port PoE
You Might Also Want to Add
More infoMake 4 interest-free payments of $67.47 fortnightly and receive your order now.
TEF1118P-16-150W is a unmanaged PoE switch independently designed by Tenda. Compliant with IEEE 802.3af and IEEE 802.3at standards, it can identify PoE-powered devices intelligently. With a maximum PoE power output of 150 W, and 30 W for a single port, it can supply power when transmitting data with APs, IP cameras, and IP phones. The switch supports 4 working modes, including standard, priority, extend and VLAN modes, is an ideal choice for SMBs, hotels, schools, factories with video surveillance and wireless networking requirements.
| Standard & Protocol | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at |
| LED indicator | 16 × Link/Act LEDs 1 × G1 LED 1 × G2/SFP2 LED 1 × PoE-MAX LED 1 × Power LED |
| Interface | 16 × 10/100 Mbps Base-TX RJ45 ports (Data/Power) 2 × 10/100/1000 Mbps Base-T RJ45 ports (Data) 1 × 10/100/1000 Mbps Base-X SFP port (Combo) |
| Forwarding Rate | 5.36 Mpps |
| Switching Capacity | 7.2 Gbps |
| MAC Address Table | 4K |
| Lightning-proof | ≥ 6KV |
| Input Voltage | AC: 100-240V~50/60Hz |
| PoE Supply | Ports 1-16 support standard IEEE802.3af/at 30W output per PoE port 130W output of the total PoE Power |
| Power Consumption | 150W output the whole device |
| Dimension | 294 × 178.8 × 44mm |
| Four Modes | Standard: Default mode of the switch. In this mode, it works as an unmanaged switch all ports can communicate with each other separately. Priority: In this mode, port G1 and G2/SFP2 serve as uplink ports, ports 1 – 8 serve as high priority port. All ports can communicate with each other separately.Extend: In this mode, data rate of ports 9 - 16 reduces to 10 Mbps, the maximum transmission distance can be 250 meters, and all ports can communicate with each other. VLAN: In this mode, ports 1 - 16 of the switch can communicate with port G1, G2/SFP2 separately, but cannot communicate with each other. You can enable this mode to reduce broadcast storm and isolate DHCP broadcast. |
| Environment | Operating Temperature: 0°C~45°C (32°F~113°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Certification | CCC, FCC, CE, RoHS |
Product Contents:
1 x Tenda TEF1118P-16-150W 16FE and 2GE/1SFP Desktop Switch With 16-Port PoE
(V28-ELETENDTEF1118P16150W)
