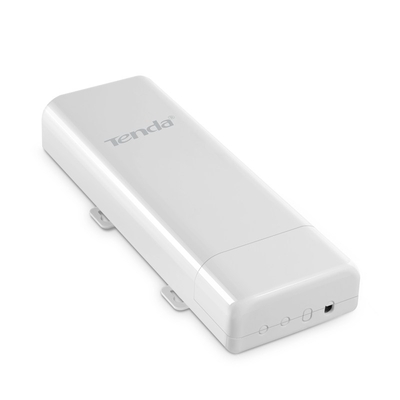

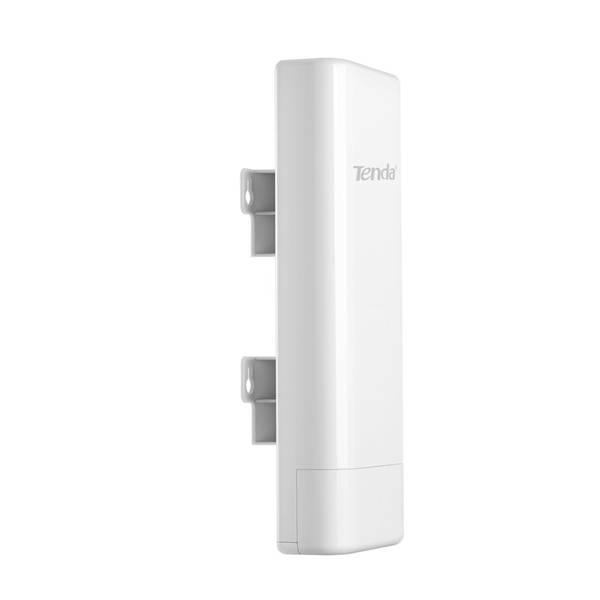

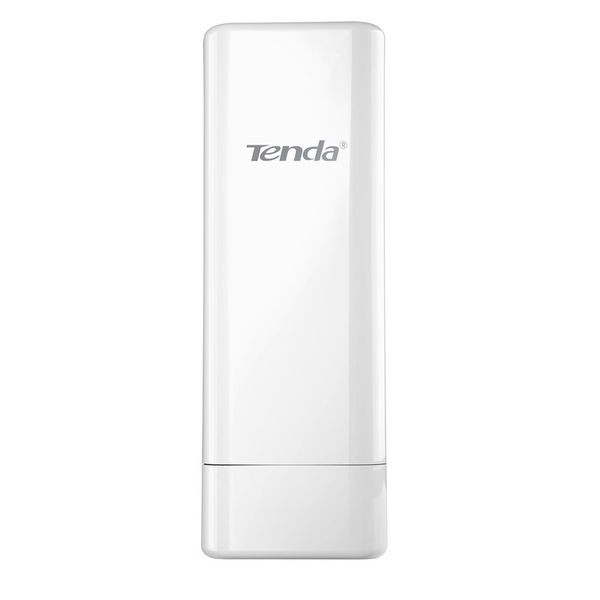

433Mbps Outdoor Point to Point CPE
You Might Also Want to Add
More infoMake 4 interest-free payments of $44.17 fortnightly and receive your order now.
Features:
O6 5GHz 433Mbps outdoor Point to Point CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with an external power amplifier and a built-in 16dBi directional antenna to provide an efficient way to pick up and maintains a stable signal for a wireless network connection range up to 10 kilometers.
| Dimension | 270 × 94.86 × 67.5mm |
| Frequency Range | 5GHz |
| Maximum wireless speed | 433Mbps |
| CPU Processor | Broadcom 800MHz |
| GND Terminal | 1 |
| Interface | 1 × GE PoE/WAN/LAN port |
| Mode Switch | Station: The device only work in Station mode Off: The device work on AP/Station/Universal Repeater/WISP/Router mode AP: The device only work in AP mode |
| Button | Reset: Press 10 seconds or more to restore to default settings Bridge: Press 3 seconds and release it to bridge uplink AP |
| Antenna | 16dbi Directional Antenna |
| Antenna Beamwidth | Horizontal: 30° Vertical: 15° |
| Maximum Consumption | 9W |
| Waterproof Level | IP64 |
| LED indicator | LAN,LED1,LED2,LED3 |
| Power Supply | 24v 0.5A PoE Injector |
| Operating mode | AP/Station/Universal Repeater/WISP/Router |
| Standard & Protocol | IEEE 802.11ac/n/a |
| Wireless Speed | Enable/Disable Wireless Radio SSID Hidden Wireless Client isolation Sensitivity Threshold WMM Capable APSD Capable Wireless Access Control Wireless Client list |
| Wireless Security | 64/128 WEP,WPA-PSK,WPA2-PSK,WPA & WPA2-PSK,WPA,WPA2 |
| Transmit Power | Adjustable power by 1dBm |
| Reception Sensitivity | MCS0: -90dbm MCS7: -72dbm |
| DHCP Server | DHCP Server Clients list |
| VPN Pass-through | PPTP,L2TP |
| Ping Watchdog | Support |
| Speed Test | Support |
| Remote Web access | Support |
| Schedule Reboot | Support |
| Page Timeout | Support |
| Dyndns | noip, dyndns.org |
| Network Diagnoses | Ping, Traceroute, Signal Scan |
| Management Tool | Time & Date Setting System Log Firmware update Backup/Restore Configuration Username Managerment |
| Temperature | Operating Temperature: -20°C ~ 55°C Storage Temperature: -40°C ~ 70°C |
| Humidity | Operating Humidity: 10%~90% non-condensing Storage Humidity: 10%~90% non-condensing |
| Default Settings | IP Address: 192.168.2.1 Login Username: admin Login Password: admin |
| Certification | FCC/CE/RoHS |
Package Contents:
1 x Tenda O6 10km 5GHz 433Mbps Outdoor Point to Point CPE
(V28-ELETENDO6)
