5GHz 300Mbps Outdoor CPE
You Might Also Want to Add
More infoMake 4 interest-free payments of $29.34 fortnightly and receive your order now.

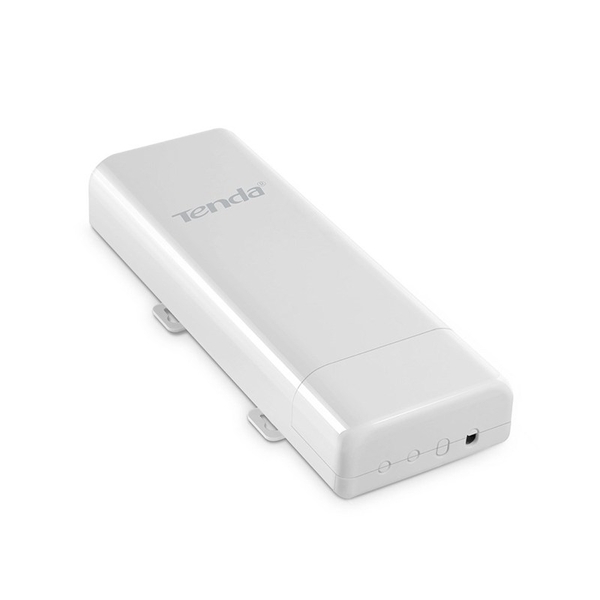

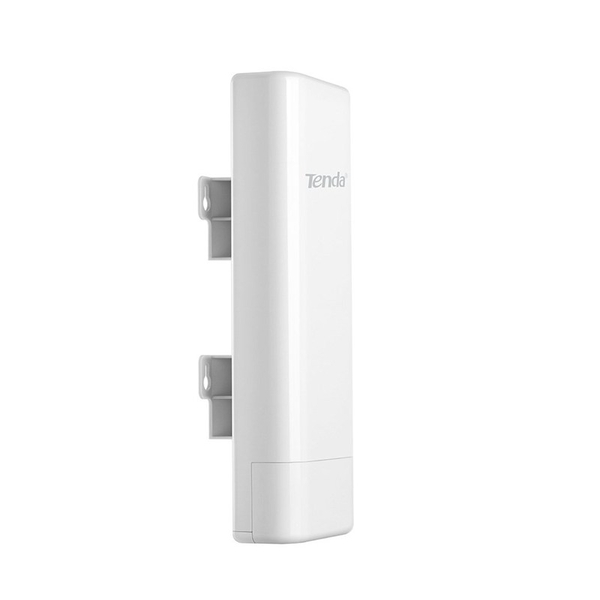

O4 5GHz Long Range Outdoor CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with 14dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network. Adopt of auto-bridging technology,two CPE can connect to each other automatically to make it easy to setup.
| Dimension | 270 × 94.86 × 67.5mm |
| Deployment | Pole Mount/Wall Mount |
| Application Scenarios | WISP CPE, Data transmission and Long range video surveillance |
| Frequency Range | 5GHz |
| Standard & Protocol | IEEE 802.11a/n |
| Private TDMA Protocol | TD-MAX |
| Maximum wireless speed | 300Mbps |
| Interface | 1 × 10/100Mbps Ethernet Port |
| Antenna | Antennas Gain: 14dbi Antenna Beamwidth: Horizontal: 30° Vertical: 30° |
| Reset Button | 1 |
| DC Jack | 1 |
| Power Consumption | 8.5W |
| Waterproof Level | IP64 |
| LED indicator | PoE/LAN,LED1,LED2,LED3 |
| Power Method | 24V0.5A Passive PoE |
| Lightning Protection | 6000V |
| Passive PoE power supply | Passive power over ethenet via PoE/LAN ( 4,5pins -7,8pins) Voltage range: 21-25V DC |
| Reception Sensitivity | MCS0: -96dbm MCS7: -72dbm |
| Operating Mode | AP/Station/WISP/P2MP/WDS Repeater/Router |
| Enable/Disable Wireless Radio | Support |
| SSID Hidden | Support |
| SSID Isolation | Support |
| Channel | 10/20/30/40MHz |
| Client Limitation For SSID | Support |
| Wireless Access Control | Support |
| Weak Signal Client Limitation | Support |
| Transmit Power | Adjustable power by 1dBm |
| WMM Capable | Support |
| APSD Capable | Support |
| Wireless Security | 64/128 WEP,WPA-PSK,WPA2-PSK,WPA & WPA2-PSK,WPA,WPA2 |
| Transparent Bridge | Support |
| VLAN Tagging for SSID | Support |
| DHCP Server | Support |
| VPN Pass-through | PPTP,L2TP |
| Schedule Reboot | Support |
| Page Timeout | Support |
| Ping Watchdog | Support |
| Dynamic DNS | noip, dyndns.org |
| Network Diagnoses | Ping, Traceroute, Signal Scan |
| Time & Date Setting | Support |
| Firmware Upgrade | Support |
| Backup/Restore Configuration | Support |
| Username Managerment | Support |
| Syslog | Support |
| Managed By Controller | PC Software -- CPE Assistant |
| Temperature | Operating Temperature: -30°C ~ 60°C Storage Temperature: -40°C ~ 70°C |
| Humidity | Operating Humidity: 10%~90% non-condensing Storage Humidity: 10%~90% non-condensing |
| Default Settings | Default login IP: 192.168.2.1 Default Login Username: admin Default Login Password: admin |
| Certification | FCC/CE/RoHS |
Package Content
1 × 5km Point to Point Outdoor CPE O4
1 × PoE Power Adapter
1 × Quick Installation Guide
(V28-ELETENDO4)
