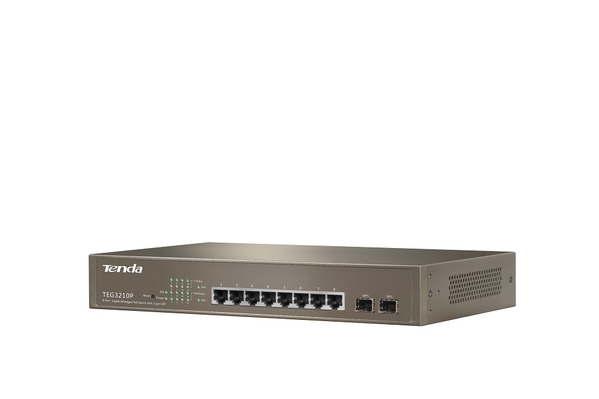

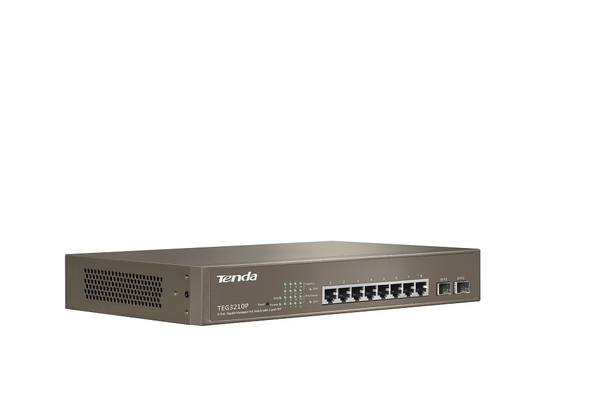

8-Port Gigabit Managed PoE Switch with 2-Port SFP
You Might Also Want to Add
More infoMake 4 interest-free payments of $67.47 fortnightly and receive your order now.
TEG3210P Tenda managed PoE Switch developed independentlyfor requirement of building high-performance Gigabit Ethernetnetwork. With 8 10/100/1000 Base-T Ethernet ports and 2 extraindependent 1000Base-X Gigabit SFP ports, various ports allowusers networking more flexible. RJ45 ports 1~8 support IEEE802.3af PoE (15.4W) or 802.3at PoE+ (30W) standard. In additionto these, it provides stronger safety protection system, improvedQoS policy, multiple VLAN features and higher availability ofmaintenance. For enhance safe feature, all of this series productsupport IP-MAC-Port-VLAN binding, IP/MAC/ARP filtering, canfilter related data which assist to build reliable and high-performancenetwork to meet the requirement of Gigabit wirelesscabling and HD monitor network for large and medium enterprise,star hotel and large shopping mall.
| Hardware Features | ||
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q, IEEE 802.3ad | |
| Switching capacity | 20Gbps | |
| Throughput | 14.8Mpps | |
| Dimensions (W × D × H) | 294mm x 178.8mm x 44mm | |
| MTBF | ≥100,000 hours(about 11 years) | |
| Indicators | Link/Act, PoE Status, Power , System,PoE Max | |
| Interfaces | 8 10/100/1000Mbps RJ45 Ports(Data/PoE) 2 100/1000Mbps SFP Slots (Data) (Auto Negotiation/Auto MDI/MDIX) |
|
Capacity |
Wire-speed forwarding | Support |
| Forwarding mode | Store-forward and cut-through | |
| Mac Address Table | 8K | |
| PoE Supply | Port 1 to Port 8 support standard IEEE802.3at/af power( maximum power for each port is 40W), PoE power type is end-span(12+, 36- line pair) |
|
| Input Voltage | AC: 100~240V ~ 50/60Hz | |
| Power consumption | in full configuration:<130W Power Supply: 115W |
|
| Input Voltage | AC: 100~240V ~ 50/60Hz | |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
| Software Features | ||
| PoE management | Support setup of PoE and power adjustable by priority; Support over temperature protection for PoE module; Support graphical management, detection of PD; equipment and setting of the power consumption; PoE control and schedule by hour/weekly basis |
|
| MAC table | Supports up to 10 VLAN IDs Port VLAN Supports up to 64 VLAN IDs 802.1Q VLAN Supports VoiceVLAN |
|
| Security | IEEE 802.1X Port/MAC Based authentication Port Security Broadcast/Multicast/Unknown-unicast Storm Control |
|
| DHCP | DHCP Client DHCP Snooping DHCP Snooping option82 |
|
| Link aggregation | IEEE 802.3ad LACP; Static Trunk Supports 2 groups of 8-Port trunk support |
|
| STP | STP/RSTP | |
| IGMP Snooping | IGMP (v1/v2) Snooping; IGMP Fast Leave mode support |
|
| Port Mirroring | N: 1 port mirroring | |
| QoS | 802.1p and DSCP priority re-marking; Flow control; Flexible queue scheduling algorithm can be set based on port and queue, support SP, WRR |
|
| Management and maintenance | Support configuration through CLI, Telnet; Support SNMP v1/v2/v3 and WEB-based management; Support PING, Tracert; Support loopback detection |
|
| Certification | FCC, CE, RoHS | |
Package Content:
1 x Tenda TEG3210P 8-Port Gigabit Managed PoE Switch with 2-Port SFP
(V28-ELETENDTEG3210P)
