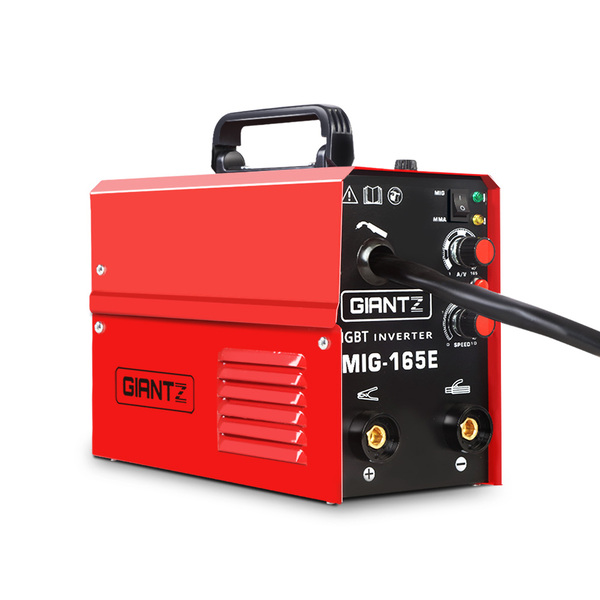

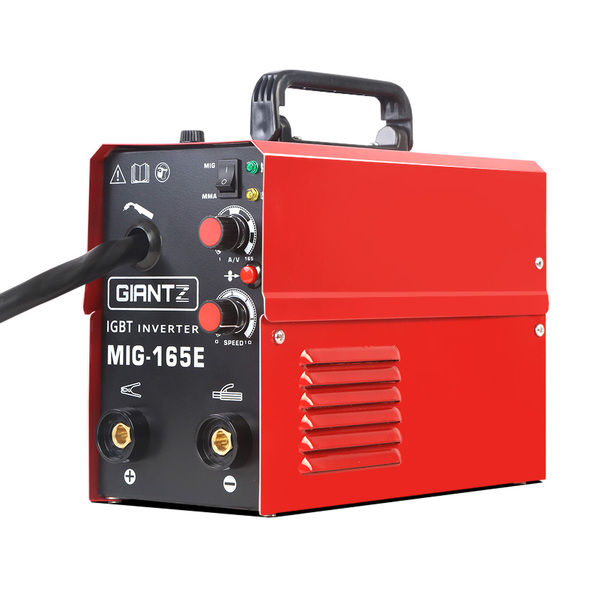

GIANTZ DC Inverter Welder MIG MAG MMA ARC Welding Machine Gasless Portable 165A
You Might Also Want to Add
More infoMake 4 interest-free payments of $68.19 fortnightly and receive your order now.
The Giantz Inverter Welder offers professional quality MIG/MAG/MMA welding with results that matter. It features IGBT DC inverter technology that allows a huge increase in duty cycle, deep penetration and a smooth welded finish. The machine can handle an array of electrodes and rod sizes. The output current is adjustable between 20A and 165A to produce flawless results with all kinds of metals including mild steel, stainless steel, carbon steel and even sheet metal. The advanced cooling system with its large fan and radiator also ensure that heat is dissipated easily for better welding performance and durability. Operating the machine is also enhanced with the digital display and user-friendly controls. Not least, safety is never taken for granted as the machine is protected from overloading current, overheating and dust and water protection. The compact machine is lightweight for easy handling and comes with a full range of accessories for hassle-free welding.
Features:
- Compact and lightweight
- IGBT inverter technology
- Super stable DC inverter technology
- Current stablisation and auto increase
- LED display
- Industry-standard DIN sockets
- Adjustable output current range 20A to 165A
- Advanced cooling system
- Overheating, over current, and over/under voltage protection
- Stable arc
- Works with a range of rod sizes
- SAA, EMC, CE and C-Tick certified
Specifications:
- Power Voltage: Single Phase 220V ±15%, 50/60Hz
- Power Plug: 15A AU Standard
- Output Current Range: 20A – 165A
- Duty Cycle: 40% @ 165A, 60% @ 130A
- Efficiency: 85%
- Power Factor: COS 0.93
- No-load Power: 50W
- Rate Output Voltage: 20.8 - 30V
- Shell Protection Grade: IP21
- MIG Torch Length: 3M
- Electrode Cable Length: 1.8m
- Earth Clamp Cable Length: 1.2m
- Power Cord Length: 1.8m
- Welding Electrodes: 1.6mm – 4.0mm
- Generator Recommended: 5.3kVA (real power)
- Dimension (L*W*H): 29.5cm X 13cm X 26cm
- Net Weight 6.4kg

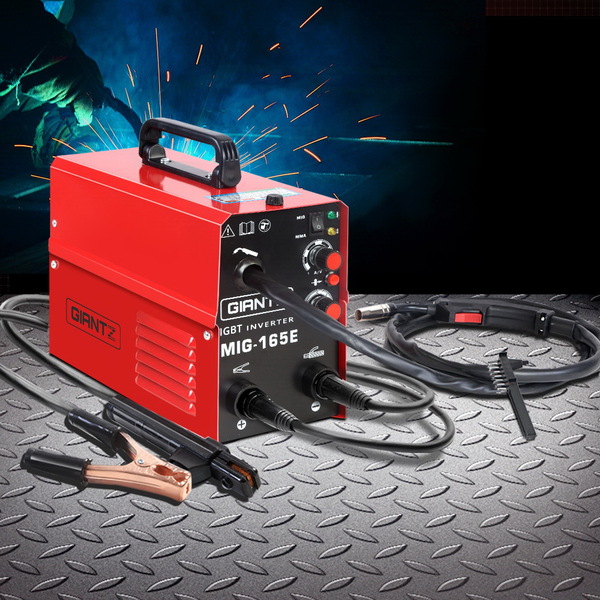

Product Contents:
- 1 x GIANTZ Inverter Welder
- 1 x Electrode Holder Lead
- 1 x Earth Clamp Lead
- 1 x Welding Mask
- 1 x Wire Brush
- 1 x User Manual
(WLD-INV-MIG-ECO-16)
