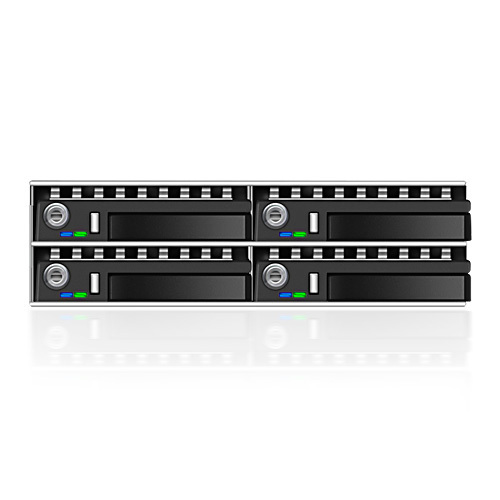

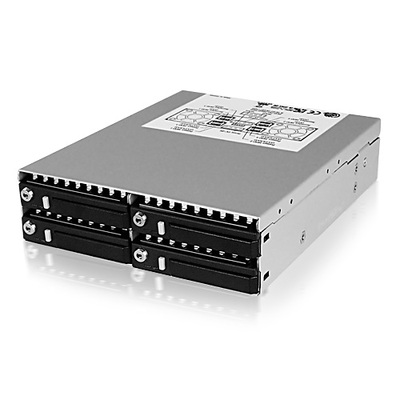

ICY BOX- IB-2222SSK - 4x 2.5" Dual Channel SAS/SATA HDD Backplane
You Might Also Want to Add
More infoMake 4 interest-free payments of $57.92 fortnightly and receive your order now.
Features:
HDDs in the 2.5" form factor are getting more and more popular as their storage capacity is growing.
It is only consequent to employ them in servers. Thats why ICY BOX offers a backplane that fits into a single 5.25" unit and is for four 2.5" SAS or SATA HDDs.
The height of the HDDs may even be 15 mm, for greatest storage capacity.
Two host connectors per HDD make possible the operation of SAS HDDs in dual channel mode. This ICY BOX works reliably even with huge amounts of data being pumped. That's a great recommendation for the hard duty in RAID systems.

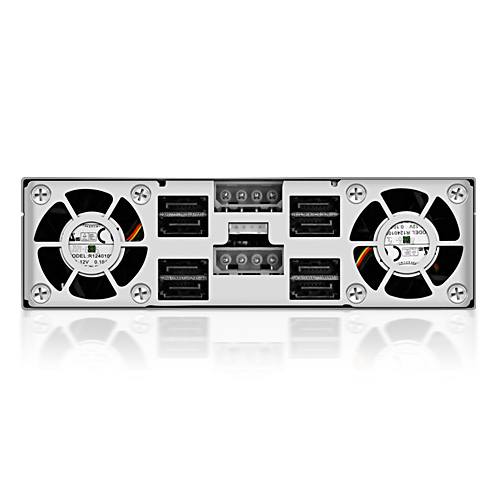

Accordingly demanding is the layout of the cooling. While the aluminium casing cools two 40 mm fans work reliably and silently. Everything is as solid and safe as you might know it from the ICY BOX backplanes fort he big ones.
Specifications:
Technical Data
Model: IB-2222SSK
Article No.: 20295
EAN Code: 4250078184669
Brand: ICY BOX
Category: Backplane
Colour: Black
Material: Aluminium
Required space: 1x 5.25"
Carrier: 4x
Fan: 2x 40x40x10 mm
HDD size (inch): 2.5"
HDD height: 9.5 up to 15 mm
HDD size (cm): 6.35 cm
HDD capacity: No limit
HDD interface: 4x 2.5" SAS/SATA
Host interface: 4x SAS/SATA
Transfer rate: Up to 3.0 Gbit/s
Hot Swap: Yes
Plug Play: Yes
Lock: Yes
Operating system: OS independent
Power connector: 2x Molex 4Pin (12 V/5 V)
Alarm: Visual, LED lights up red
LED: 4x Power, 4x HDD access/HDD failure
Logistic Data
Packing unit: 8 pcs./carton
Total weight: 14,5 kg/Karton
Gross weight (incl. packing): 1.70 kg
Net weight: 1.30 kg
Dimension of article: 180x146x42 mm

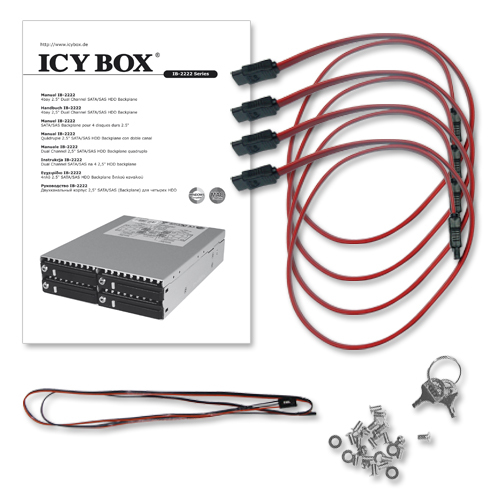

Package Contents:
1x IB-2222SSK backplane
5x case screw
18x HDD screw
2x key
4x SATA cable (with latchable connectors)
1x HDD error cable
1x manual
(V28-HDDICY2222SSK4B)
