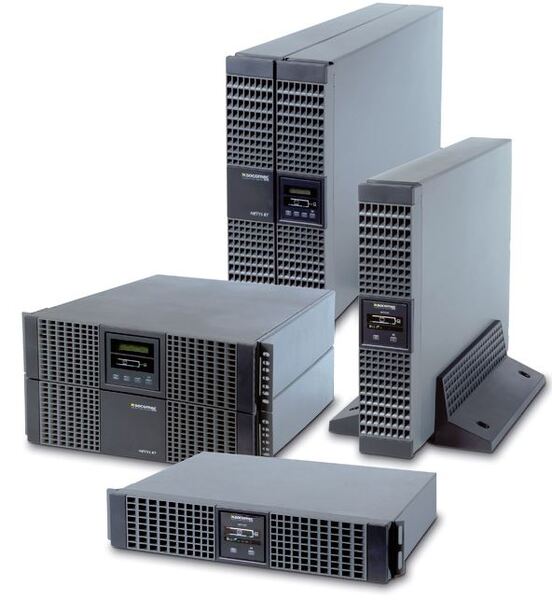

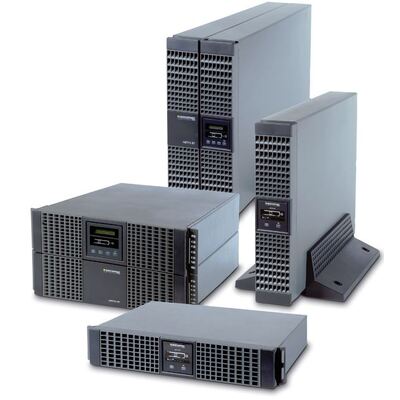

Netys RT 1100 rack 2U/tower UPS

Socomec : Netys RT 1100 rack 2U/tower UPS

The NETYS RT 1100 rack 2U/ tower UPS is the complete solution for IT infrastructures. It is the solution for switching, storage, servers and networking devices, VoIP communication systems, structured cabling systems, control systems and Video surveillance systems

 Features

Simple to install

• IEC input and output connections (1100‑3000 VA) or terminal input and output connections with built-in magnetothermal input switch (5000-11000 VA).
• Compact footprint for installation in rack cabinets.
• Attractive design.

Easy to use

• No configuration necessary on first startup.
• Wide range of communication protocols for integration into LAN networks or Building Management Systems (BMS).
• Clear LED interface with buzzers that immediately indicate the operating status of the UPS, even for less specialist users (1100‑3000 VA).
• LCD display with menu available in 6 languages (5000-11000 VA).

Meets practical needs

• Online double conversion technology with sinusoidal waveform, completely filters out all disturbances from / to the mains power
supply and ensures maximum protection of the utility.
• Modular battery extension (EBM) to meet all back-up time requirements, even after installation.
• Possibility of 1+1 parallel redundant configuration to maximise the availability of critical utilities, even in the event of a module breakdown (5000‑11000 VA).





Specifications

• Online Double Conversion

• 1100VA

•   Universal tower + 2U rack inc rail kit,

• USB & RS232 comm's port & cable

• Optional SNMP card available

• 6 x 10A IEC outlets, includes 3 pin Aust input cord + 1 x Aust output conversion cord & 1 x IEC cord





Standard and Option Features

Standard electrical features

• Built-in backfeed protection.
• Protection against atmospheric phenomena (NTP) for telephone / ADSL modems.
• RJ11 connection for Emergency Power Off (EPO).
• Connection for battery extension modules.
• Port for parallel operation (5000-11000 VA).



Electrical options

• 1+1 parallel module (5000-11000 VA).
• Manual bypass without interruption (5000-11000 VA).
• Battery extension modules.

Standard communication features

• LOCAL VIEW: ideal UPS monitoring and shutdown point-to-point solution for Windows® operating system.
• UNI VISION: software for the control and automatic shutdown of applications connected to Linux.
• UNI VISION PRO: advanced user interface via serial link and multiple shutdown management for several operating systems.
• HID: UPS management based on Windows® embedded service - USB interface (1100-3000 VA).
• MODBUS/JBUS RTU.
• RT-VISION: professional WEB/SNMP interface for UPS monitoring and shutdown management of several operating systems (5000-11000 VA).

Communication options

• RT-VISION: professional WEB/SNMP interface for UPS monitoring and shutdown management of several operating systems (1100-3000 VA).
• Dry-contact interface.

Technical Data

Connections



Connections



1. Mains input socket (IEC 320) 2. Fan 3. Output socket (full power) 4. Telephone / modem line protection 5. EPO (Emergency Power Off) input 6. RS232 interface (JBUS protocol) 7. USB port 8. Input protection 9. Output sockets (IEC 320 - 10 A) 10. Battery extension connector 11. Slot for optional communication boards 12. Battery extension connector 13. Output terminals 14. Input terminals 15. Input switch 16. RJ45 LAN ethernet connector 17. Parallel port connector





Battery extension



Netys RT 1100-3000 VA - Battery extension



 Netys RT 5000-11000 VA - Battery extension



Control panel



1. Yellow LED lit. Operation in bypass mode 2. Green LED lit. Mains healthy 3. OFF button 4. Green LED lit. Normal operation (inverter in-line) 5. ON / TEST and buzzer override button 6. LED bar. Depending on the situation, this indicates either the charge level or the capacity of the battery 7. Navigator buttons 8. Alphanumeric LCD display 9 Green LED lit. Status of the load. Â





Technical data



Power 1100 VA / 800 W 1700 VA / 1200 W 2200 VA / 1600 W 3000 VA / 2100 W 5000 VA / 4500 W 7000 VA / 5400 W 9000 VA / 7200 W 11000 VA / 9000 W Architecture PFC and automatic bypassonline double conversion VFI with input Parallel redundant function - - - - 1+1 1+1 1+1 1+1 Input Voltage 230 V (1ph) 160~275 Vac; up to 130 Vac @70% load 230 V (1ph) 181~280 Vac up to 100 Vac @50% load Frequency 50/60 Hz +/-10% (Auto-Selectable) Power factor / THDi >0.98 / <6% >0.99 / <5% Output Voltage 230 V (1ph) selectable 200 / 208 / 220 / 240V - 50 or 60 Hz + /- 2 % (+/- 0.05 Hz in battery mode) Rendement up to 91% online mode up to 92% online mode Overload capability up to 105% continuously; 125% x 3 min; 150% x 30 sec up to 105% continuously; 125% x 5 min; 150% x 30 sec Output connections 6 x IEC 320-C13 (10 A) 6 x IEC 320-C13 (10 A) + 1 x IEC 320-C20 (16 A) terminals Battery Standard autonomy* 8 12 8 10 8 6 8 6 Voltage 24 Vdc 48 Vdc 48 Vdc 72 Vdc 192 Vdc 192 Vdc 240 Vdc 240 Vdc Recharge time < 6h to recover 90% capacity < 6h to recover 90% capacity Communication Mimic panel LED LCD 6 languages RS232 (DB9 port) Jbus protocol •  • • • • • • • USB HID protocol • • • • - - - - WEB/SNMP (Ethernet RJ45 port) option option option option • • • • COMM slot • • • • • • • • Dry contacts card option option option option option option option option EPO input (RJ11 port) • • • • • • • • Modem/ADSL surge protection • • • • - - - - Parallel port - - - - • • • • Standards Performance & topology EN 62040-3 (VFI-SS-111) Safety / EMC EN 62040-1 (TÜV-GS certified) EN 62040-2 Product certifications CE, TÜV-GS, C-Tick IP rating IP20 Environment Operating ambient temperature from 0 °C to +40 °C (from 15 °C to 25 °C for best battery life) Storage temperature range from -15 °C to +50 °C (from 15 °C to 25 °C for best battery life) Relative Humidity 0-90% non-condensing Noise level (ISO 3746) < 45 dB < 55 dB Dimensions & weight UPS size std (W x D x H) 88.7 x332 x440 mm 88.7 x430 x440 mm 88.7x 430x 440  mm 88.7 x608 x440 mm 177.4 x670 x440 mm 177.4 x670 x440 mm 261.2 x623 x440 mm 261.2 x623 x440 mm UPS size RACK 2U 2U 2U 2U 2U+2U 2U+2U 3U+3U 3U+3U UPS weight std 13 kg 21 kg 22 kg 31 kg 15.5+40 kg 16+40 kg 19.5+66 kg 20+66 kg EBM module size (W x D x H) 88.7 x332 x440 mm 88.7 x430 x440 mm 88. 7 x430 x440 mm 88.7 x608 x440 mm 88.7 x608 x440 mm 88.7 x608 x440 mm 130.6 x623 x440 mm 130.6 x623 x440 mm EBM module RACK 2U 2U 2U 2U 2U 2U 3U 3U EBM module weight 16 kg 29 kg 29 kg 43 kg 40 kg 40 kg 66 kg 66 kg

* @ 75% of nominal load.





Parallel redundant operation for business continuity



To achieve the highest level of availability and to power critical utilities, NETYS RT UPS modules above 3 kVA can be configured for 1:1 redundancy. Redundant operation (1+1) means: the system incorporates one more UPS module than is needed to protect the load ; in the event of a breakdown, it guarantees sufficient power supply capacity to the load by maintaining online protection. Parallel technology is based on the principle of load sharing, whereby both units are always kept active. In a redundant configuration, overall system availability is much higher than a conventional UPS system using similar technology. 1+1 redundant configuration does not require additional circuits and can therefore be set up at a later date, simply by using two UPS modules and a collector / manual bypass module which simplifies cabling and maintenance of the UPS installation. To further streamline the solution, it is also possible to select between operation with separate battery or shared battery, which is extremely useful in the case of applications requiring high levels of autonomy.



Warranty

2-year limited warranty.
