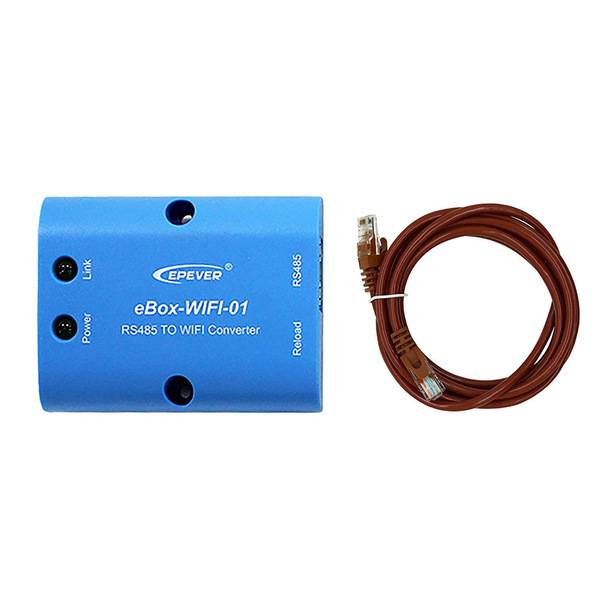

RS485 to Wifi Adapter for MPPT Solar charge Controller Communication Wireless
You Might Also Want to Add
More infoMake 4 interest-free payments of $17.78 fortnightly and receive your order now.

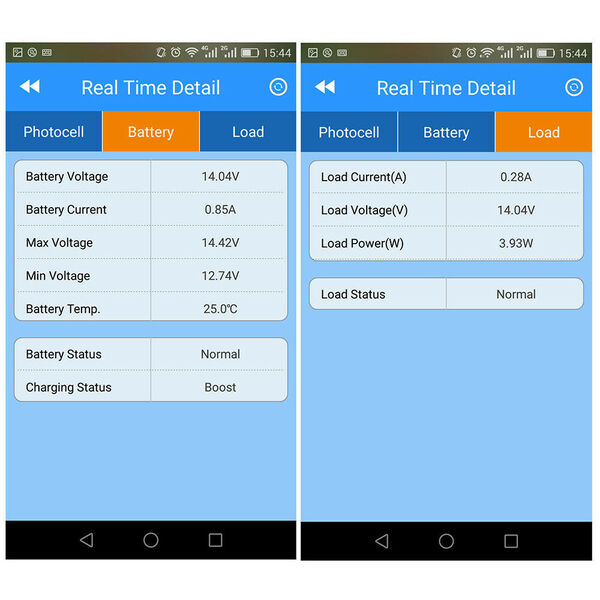

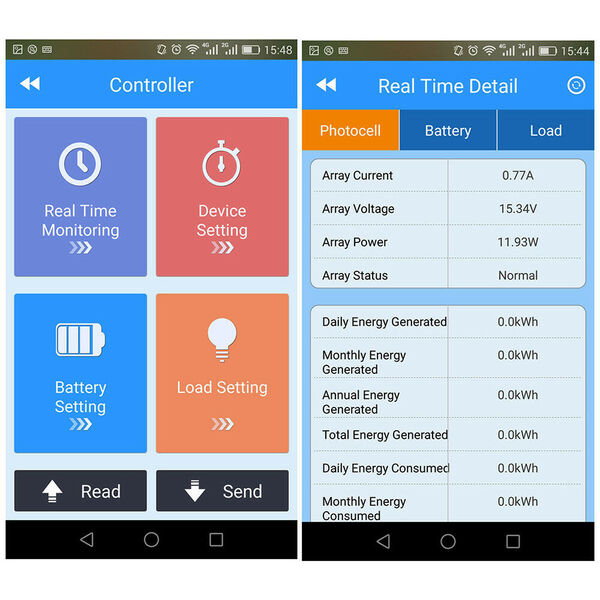

- Realize wireless monitoring function of solar controller and inverter

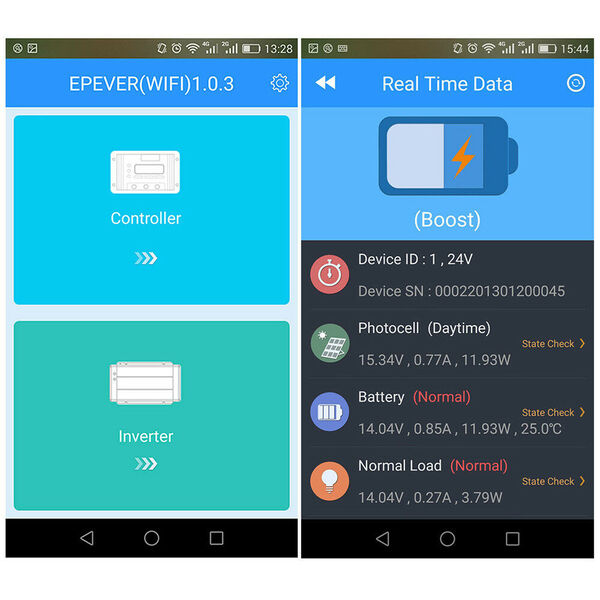

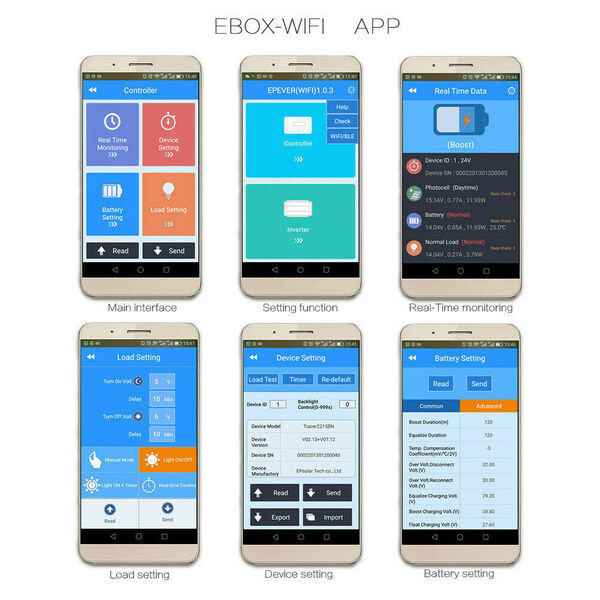

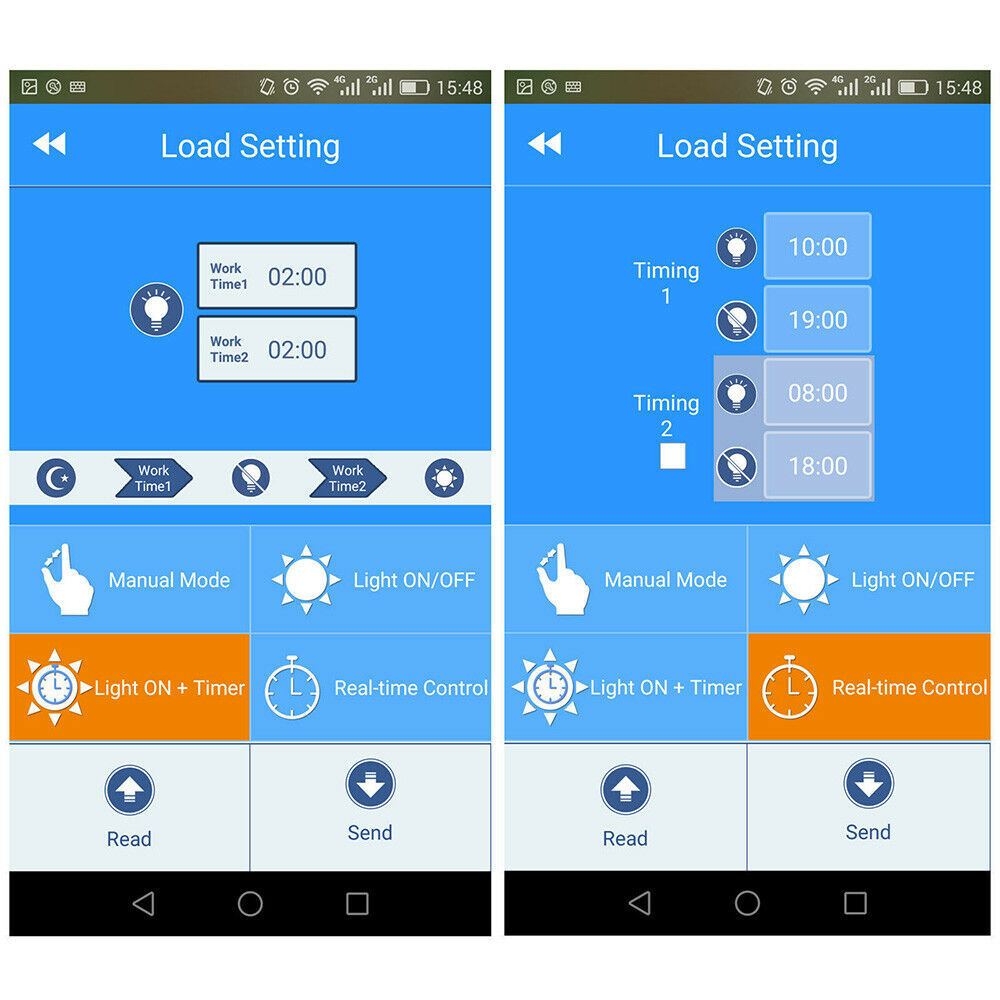

- Support mobile phone APP, plug and play, simple and convenient to set
- Use high performance CPU with core M4
- Ultra-low power consumption and high speed data processing capability
- No need of external power supply
- Communication distance up to 50 m
- One-key restore the factory settings
- Note : Just can use for Andriod phone,do not support ios/iPhone.

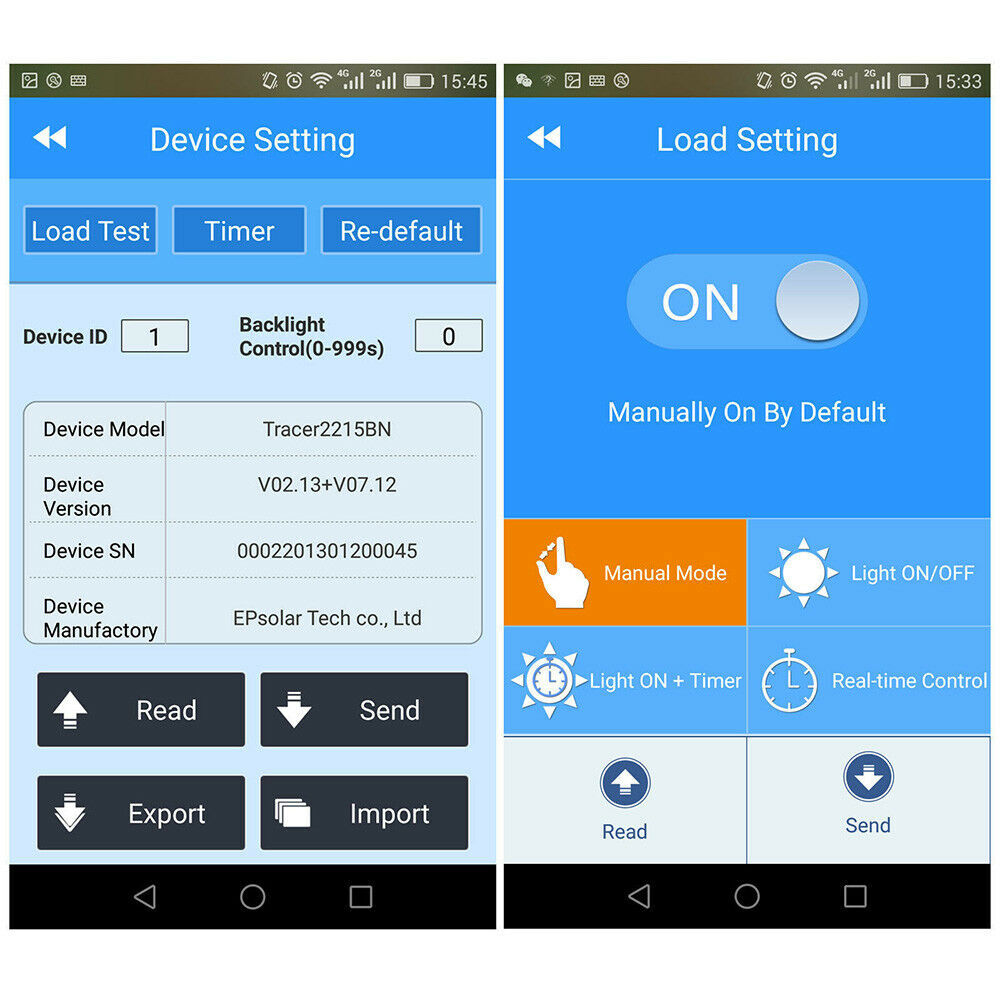

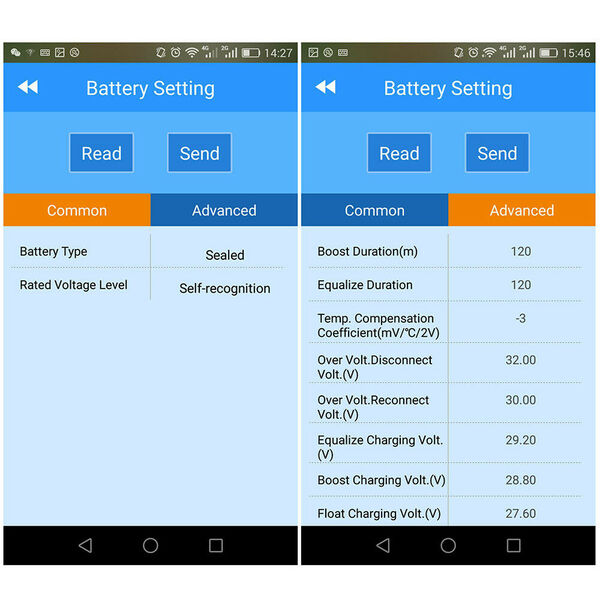

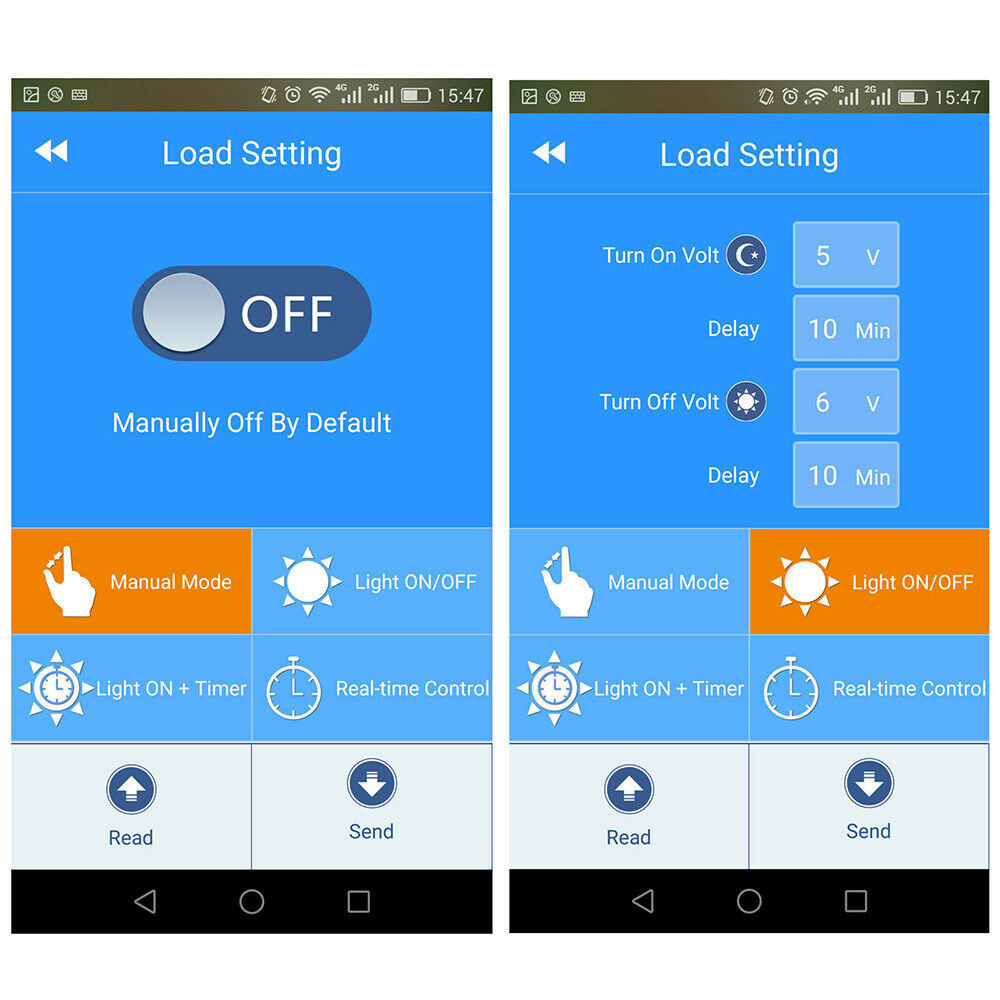

- This is a kind of serial server which can make our company's solar controller and inverter be with wifi communication function,and carry out wireless monitoring, parameter settings, and etc. for the system only by cooperating with mobile phone APP.
| Input Voltage | 5VDC(Direct powered by RS485 port ) |
| Standby power consumption | 0.20W |
| Operation power consumption | 0.25W |
| Communication distance | ≤50m |
| Port baud rate | 300bps~230400bps(Default 115200) |
| Communication | RS485 to WIFI |
| Interface type | RJ45 |
| Connecting cable | Standard network cable (Parallel cable) |
| Overall dimension | 51*67*24.5mm |
| Mounting dimension | 41.2 |
| Mounting hole size | Φ3.2 |
| Working temperature | -35~75℃ |
| Enclosure | IP30 |
| Net weight | 39g |
(V13-WIFI-MT-HU)
