500W Active Pfc F3 1U Psu (Ss-500L1U)


$397.88
In Stock

afterpay More info.

Make 4 interest-free payments of $99.47 fortnightly and receive your order now.

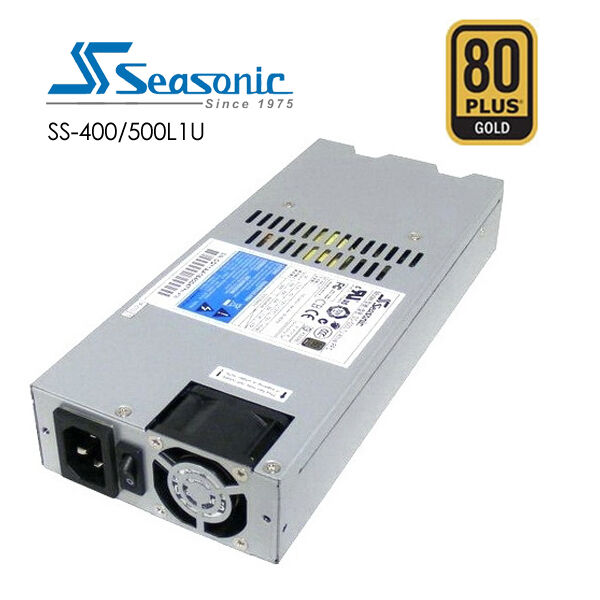

Switch Mode Power Supply - Intel EPS 12V- SS-400/500L1U Active PFC

Features:

Specification compliance: Intel EPS 12V

DC to DC converter design

High efficiency and reliability

Low THD

Low ripple noise

Super low noise fan control

Short circuit protection on all outputs

Over voltage protection

Over power protection

100% hi-pot test

100% burn in, high temperature cycled on/off

DC Outputs:

Model: SS-500L1U Active PFC

DC Outputs:

+3.3V

+5V

+12V(Combined)

-12V

+5Vsb

20A

20A

40A

0.3A

2.5A

100W*

480W

3.6W

12.5W

(Remarks: * Combined +3.3VDC +5V DC maximum power)

Total Power: 500W

Input Type: Full range

Electrical Specifications:

Input frequency: 47/63 Hz

Inrush current, cold start: 100A max.

Efficiency, at normal input voltage: > 87%

Line regulation: +/-1% typical

Load regulation: +/-5% typical

Cross regulation: +/-5% typical

Ripple / noise: 1%

MTBF, full load: >100K hours (Excluding the DC fan)

Power Factor Correction: Active PFC 99% typical

Certifications:

Satety: CUL, UV, CB

EMC: CE, Fcc, C-Tick

Specifications:

Dimension: L235 x W100 x H40mm

Connectors: Customized modular cables

Package contents:

1x SeaSonic 500W Active PFC F3 1U PSU (SS-500L1U)

(V28-PSUSEA500L1U80G)
