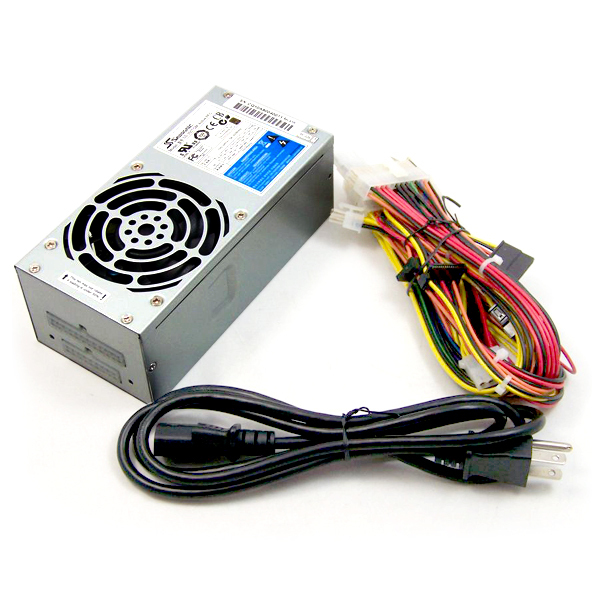

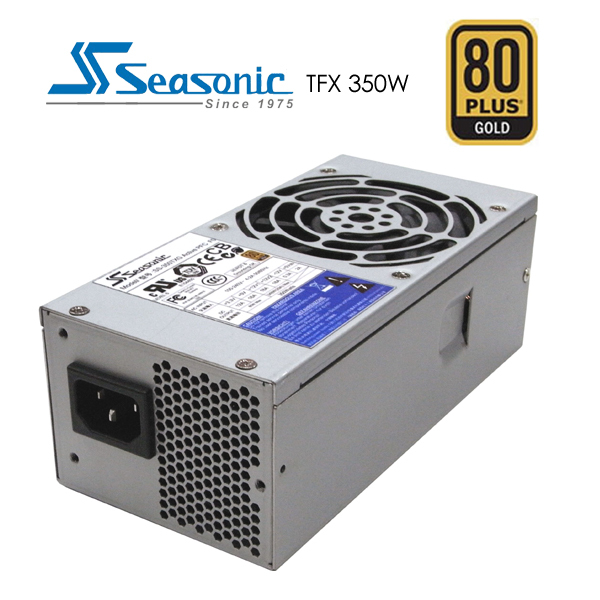

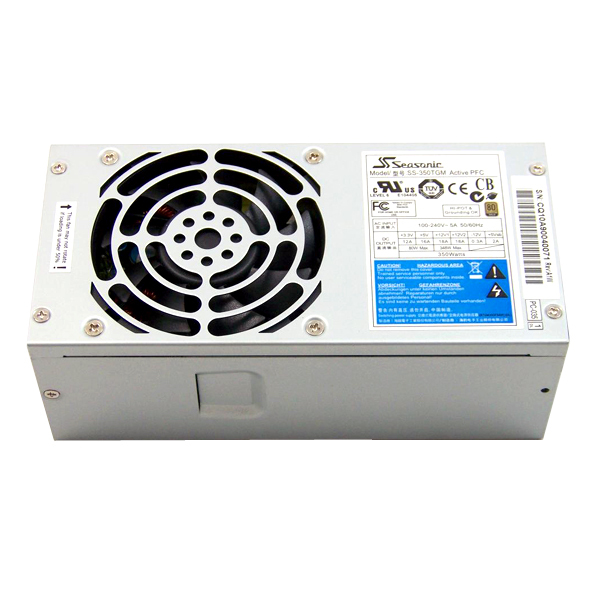

SeaSonic 350W Active PFC F0 TFX PSU (SS-350TGM)
You Might Also Want to Add
More infoMake 4 interest-free payments of $43.09 fortnightly and receive your order now.
The Seasonic SS-350TGM is probably the best quality low noise TFX power supply currently available in the market.
A number of innovations mean this PSU can operate silently with the fan stationary when the attached system load is less than 50%, under most conditions.
Furthermore the modular cabling approach means system integrators can develop a range of custom cable solutions with just a single PSU, flexibility that reduces and simplifies stock holding.
Features:
- Specification compliance: TFX12V v2.31
- Support the latest Intel & AMD Socket
- DC to DC converter design
- High efficiency and reliability
- Low ripple & noise
- Super low noise fan control
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- 100% hi-pot test
- 100% burn in, high temperature cycled on/off
Specifications:
1.CONNECTORS |
1x 20+4pin ATX |
1x 4+4pin: 4pin ATX 12V or 8pin EPS12V |
4x SATA |
2x 4pin Molex |
1x 4pin FDD |
2.GENERAL | |
Output Power | 350W |
PFC | Active PFC, 99% typical |
Efficiency | >87% 80Plus Gold Certified |
Weight | 1.25kg |
Colour | Silver |
Fan | 80mm |
Dimensions | 175x85x63.5mm (LxWxH) |
Protection | OVP,OPP, Short Circuit Protecion on all outputs |
3.ELECTRICAL | |
Input Voltage | 90 to 264Vac |
Input Frequency | 47~63Hz |
Inrush Cirremt | Cold start, 100A |
Line Regulation | 1% typical |
Load Regulation | 5% typical |
Cross Regulation | 5% typical |
Ripple/Noise | 1% |
MTBF | >100,000 hours minumum @ 25C, full load, excluding DC fan |
Output Voltage | +3.3V | +5V | +12V1 | +12V2 | -12V | +5Vsb |
Max current | 12A | 16A | 18A | 18A | 0.3A | 2A |
*Note
+3.3V & 5V 80W Max
+12V1 & 12V2 348W Max
Max combined 350W
4.ENVIRONMENTAL | |
Operational Temperature | 0 to +50C |
Storage Temperature | -40 to +80C |
Operational Humidity | 20 to 85%, non-condensing |
Storage Humiditiy | 10 to 95%, non-condensing |
5.CERTIFICATION | |
Satety | CUL, UV, CB |
EMC | CE, Fcc, C-Tick |
(V28-PSUSEA350WTGMGD)
