Winch T Series 12V Electric Winch 1133KG 2500LBS
You Might Also Want to Add
More infoMake 4 interest-free payments of $43.75 fortnightly and receive your order now.

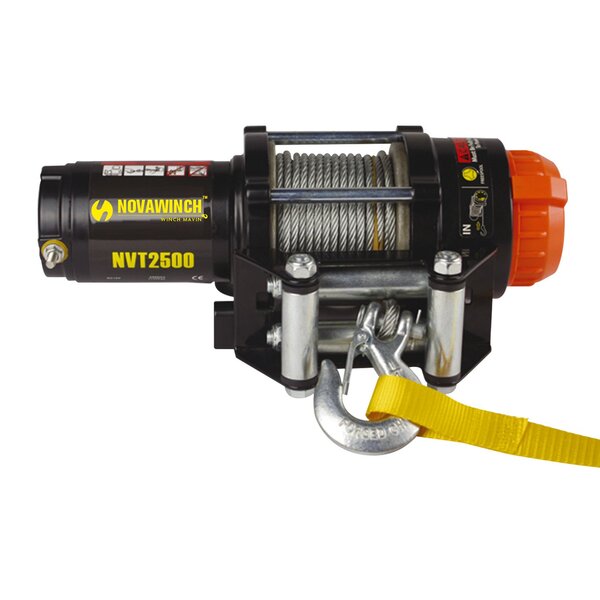

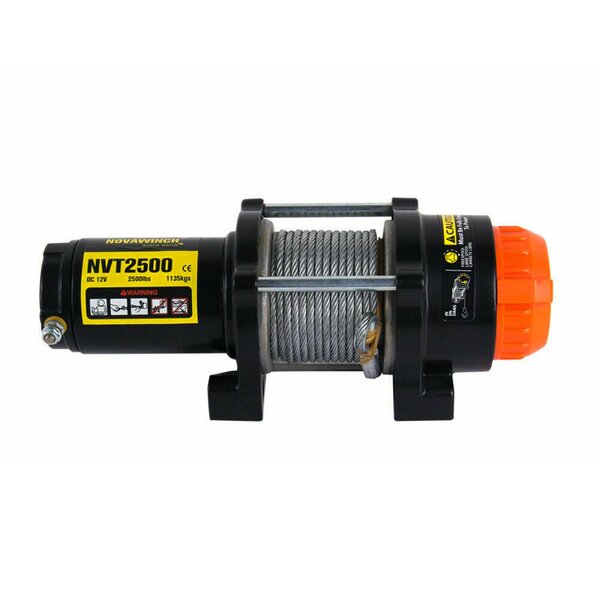

Embark on off-road adventures with the NovaWinch T Series 2500LB Utility Winch (NVT2500). Designed for ATVs & UTVs, it features a rocker switch for effortless winch operation. This means you can get out of a rough spot as smoothly and efficiently as possible. With a rated line pull of 1133kg (2500lbs), youll be able to hoist, pull and lift your sports vehicle out of most tough situations.
Whats more, its IP67 motor can rotate 90 degrees, accommodating various mounting applications for optimal functionality. Experience peace of mind with the patented automatic spring braking system, which provides reliable and efficient braking even in full-load operations. Included components like the mounting plate, 4-way roller fairlead, contactor, cable kit and hook make the NovaWinch T Series winch a robust, reliable and comprehensive tool to bring on your off-roading escapades!
FEATURES:
- Designed to lift, hoist and pull ATVs and UTVs
- Complete mounting and wiring kit

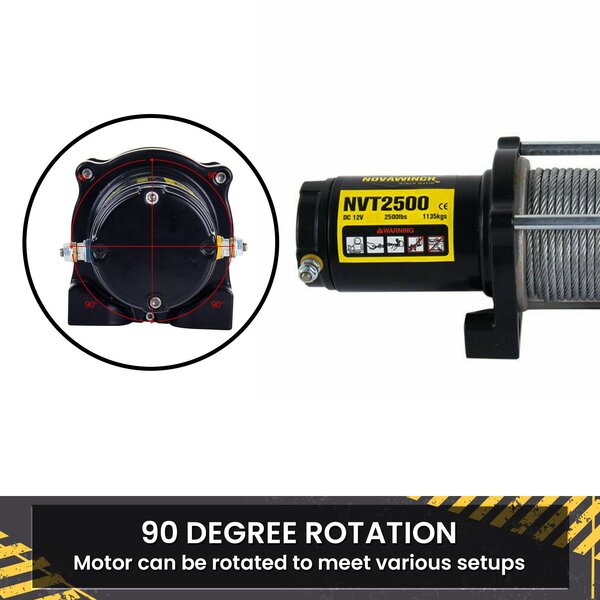

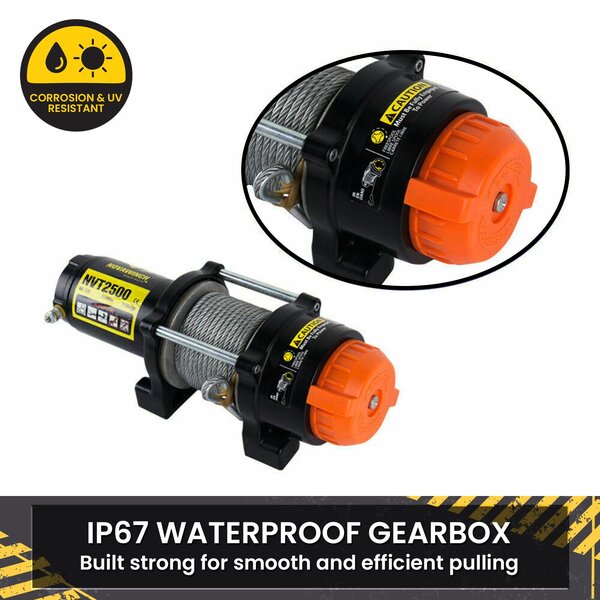

- IP67-rated motor with 90-degree rotation for various mounting applications
- Patented automatic braking system that can be used in full-load operations

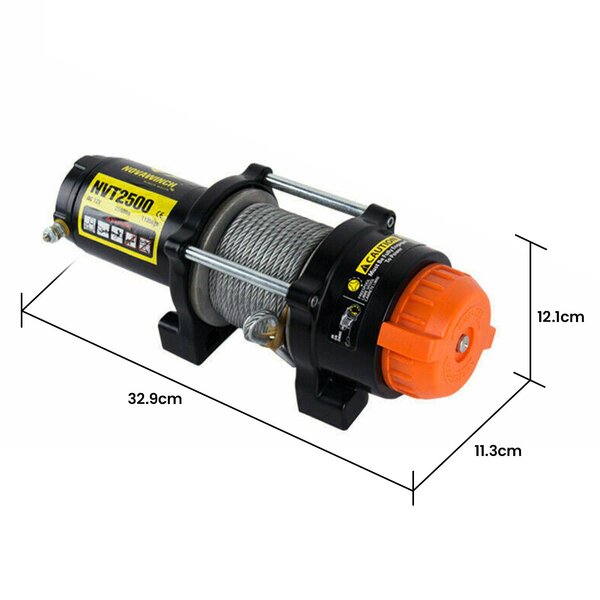

- Dimensions: 329 x 113 x 121mm

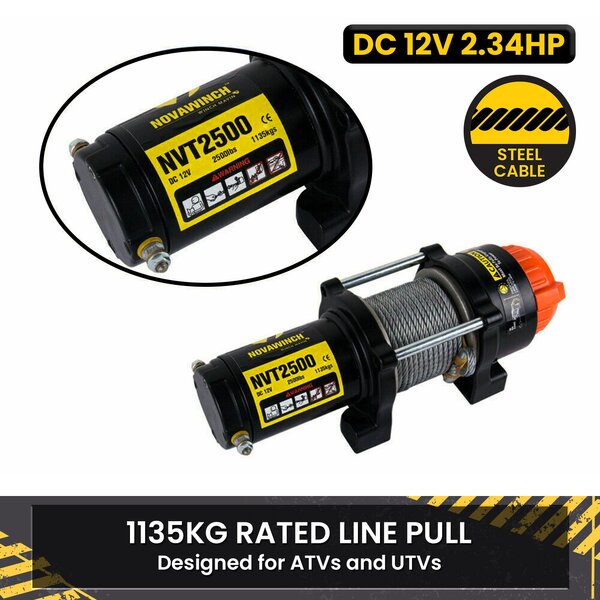

- Rated Line Pull: 2500lbs (1133kg)
- Motor: Permanent magnet 2.34hp/1.8kW (12V)
- Gear Train: 3-stage planetary gear
- Gear Ratio: 180:1
- Clutch: Sliding ring gear
- Braking Action: Mechanical, automatic load holding

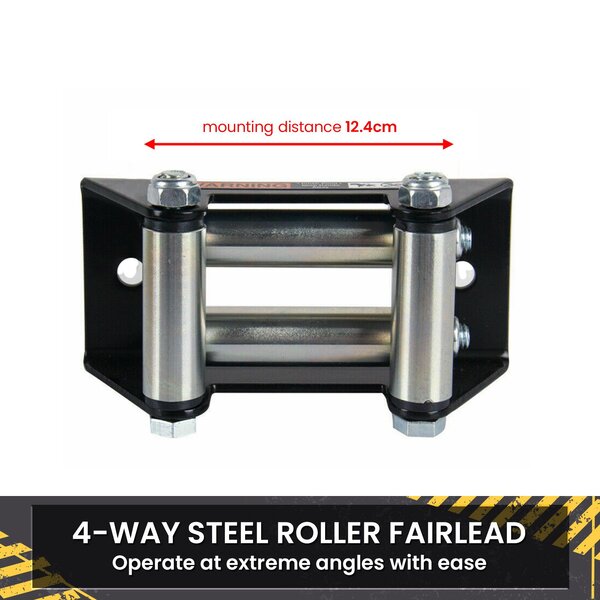

- Fairlead: 4-way roller fairlead
- Wire Rope: 4.8cm x 14m
- Drum Size: 44 x 80mm
- Mounting Bolt Pattern: 124 x 76.2mm
- Net Weight: 10.50kg
- Gross Weight: 11.00kg
CONTENTS:
- 1 x 2500LBS Electric Winch with Steel Cable
- 1 x Roller Fairlead
- 1 x 1/4 Hook
- 1 x Hand Strap
- 1 x Rocker Switch
- 1 x Contactor
- 1 x Mounting Board
- 1 x Red Power Cable
- 1 x Black Power Cable
- 1 x Blue Power Cable
- 1 x Yellow Power Cable
- 1 x Set of Mounting Bolts
- 1 x Set of Cable Ties
- 1 x User Manual
(nw01071)
