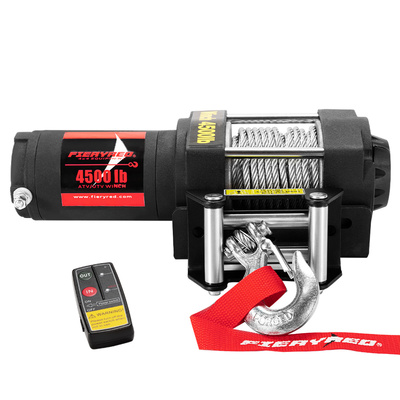

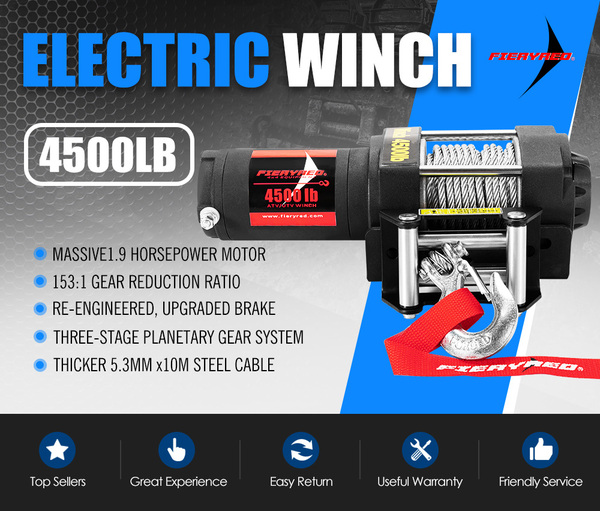

Wireless 4500LBS or 2041KG 12V Electric Winch
You Might Also Want to Add
More infoMake 4 interest-free payments of $53.72 fortnightly and receive your order now.
Designed vehicle recovery only, particular for ATV, UTV.It is not only more efficient, but quieter as well.

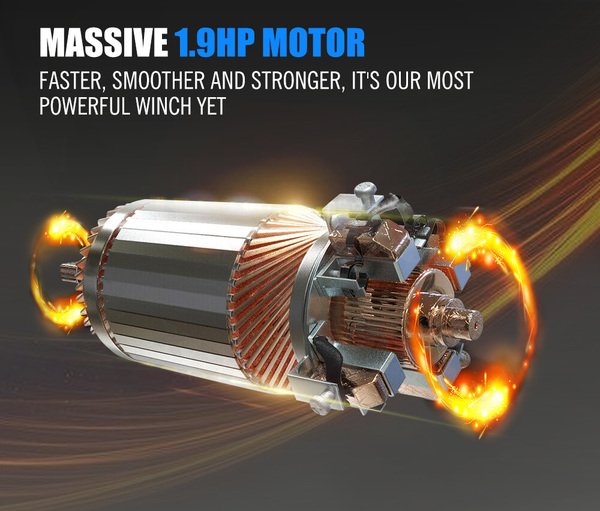

Powerful sealed 1.9 HP motor and a full metal 3-stage planetary gear train that makes line speed faster under load.

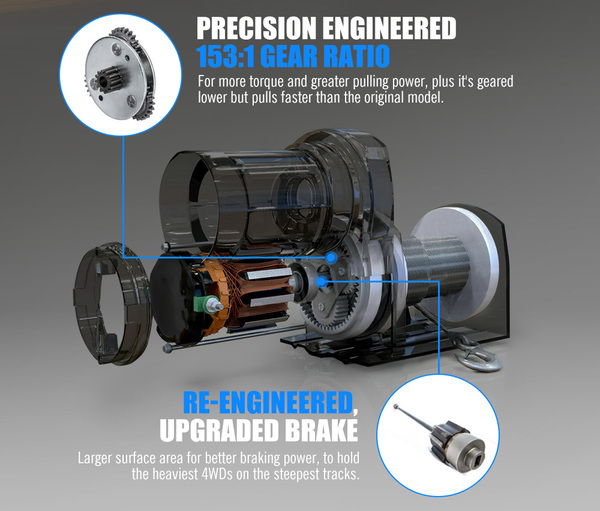

Equipped with a gear reduction ratio of 153:1 and a Three-stage planetary gear train, a guarantee for stronger pulling capacity.
Designed for solid performance against corrosion and moisture, a great bonus for those living in rainy and stormy areas.
Noted: Pls. connect two long wires to power supply,and connect two short wires to motor!
This winch is designed only for pulling along a horizontal surface not for lifting a load under any circumstances. When winching, you should stop pull the wire rope when red colored warning appears.
Do not operate the winch at an angle of more than 15°, because angles greater than this will deform or damage parts of the winch.
When hoisting, the winching capacity is only 1/5 compared with pulling along a horizontal surface.Always ensure the clutch is fully engaged or disengaged. Failure to do so will significantly reduce winching capacity.
It is highly recommended to use batteries of more than 80A. Failure to do so will also reduce the winching capacity.
Note: Avoid angle pull.The winch line should not exceed a 15° up and down for horizontal,or a 45° angle left or right from straight ahead.

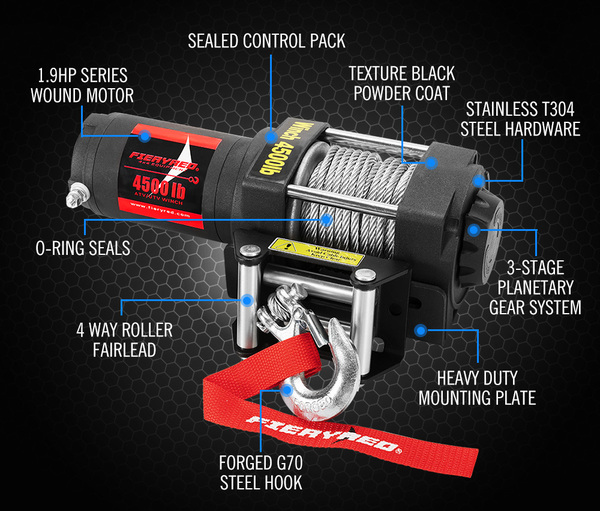

Specifications:
Rated line pull: 4500LBS(2041kg) single line
Motor: 1.9HP Permanent Magnet
Gear Reduction Ratio: 153:1
Gear train: 3-Stage planetary
Cable: Dia.5.3mm x Length (10m)
Control: Remote Switch
Clutch: Sliding Ring Gear
Breaking action: Automatic In-the-Durm

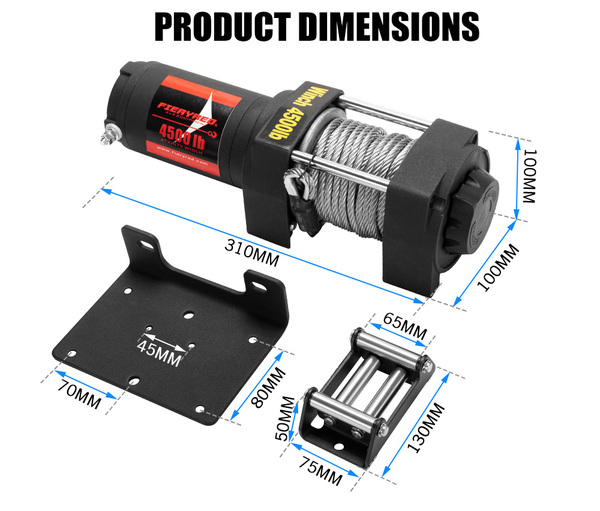

Overall Dimension(LxWxH): 316x120x106mm
Weight: 8.2kg
Package Size: 36.5x30.5x36cm
Product Contents:
1 x 4500LBS Electric Winch
1 x Wireless Remote Control
1 x Wire Control Box
1 x 4 Way Roller Fairlead

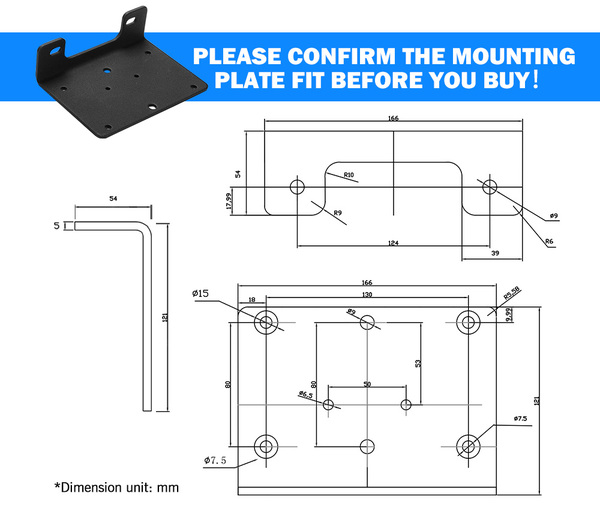

1 x Installation Mounting Plate
1 x Clevis Hook
1 x Cable Controller
Set of Bolts
1 x Maual
(V13-L-WIN4500)
